Key Features

- Brand: Cambium
- Model: ePMP Force 180
- Frequency: 5 GHz 4910 – 5970 MHz
- Integrated Antenna Peak Gain: 16 dBi
- Warranty: 1-Year Warranty

Description
Review

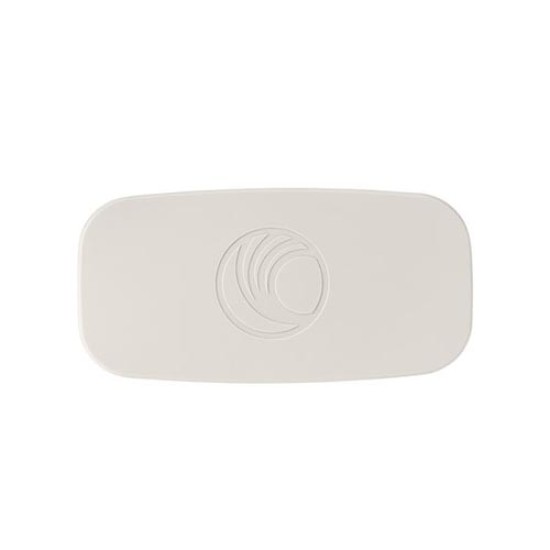

Cambium ePMP Force 180 Access Point to Point: The ePMP Force 180 is the second generation of ePMP Integrated Radio Modules. It has the exceptional reliability and quality that users have come to expect from the ePMP product line and adds some significant performance enhancements. This radio comes in a small, sleek form factor but delivers high performance. The antenna gain is increased by 3dB to 16dBi which will provide a 40% increase in range. It comes equipped with a Gigabit Ethernet port so nothing will limit this product in delivering the maximum throughput. The radio module is powered by PoE and the Ethernet port has the unique capability of being powered from a PoE injector that conforms to standard pinouts or from a PoE injector that conforms to Cambium pinouts. This makes it possible to upgrade existing radio locations to Force 180 without changing the PoE injector. It also includes an adjustable mounting bracket that eases the task of installing and properly aligning the radio.

ePMP Force 180

Channel Spacing	Configurable on 5 MHz increments
Frequency Range	5 GHz 4910 – 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width	5 \| 10 \| 20 \| 40 MHz
Interface
MAC (Media Access Control) Layer	Cambium proprietary
Physical Layer	2x2 MIMO/OFDM
Ethernet Interface	10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ =7&8,Return=4&5) and Standard PoE pinouts (V+ =4&5,Return=7&8)
Protocols Used	IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPS, STP, SSH, IGMP Snooping
Network Management	HTTPS, SNMPv2c, SSH
VLAN	802.1Q with 802.1p priority
Performance
ARQ	Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel	MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel	MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)
Modulation Levels (Adaptive)	MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of Service	Three-level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast, and Station Priority
Link Budget
Transmit Power Range	17 to- +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Integrated Antenna Peak Gain	16 dBi
Maximum Transmit Power	30 dBm combined (subject to regional regulatory restrictions)
Physical
Antenna Connection	Integrated antenna
Surge Suppression	2 Joule Integrated
Environmental	IP55
Temperature	-30°C to +60°C (-22°F to +140°F)
Wind Survival	145 km/hour (90 mi/hour ) with antenna
Weight	0.50 kg (1.1 lb.) (includes mounting bracket)
Dimensions (H x W x D)	12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached
Pole Diameter Range	1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp
Power Consumption	10 W Maximum, 5 W Typical
Input Voltage	10 to 30 V
Security
Encryption	128-bit AES (CCMP mode)
Certifications
FCCID	Z8H89FT0015
Industry Canada Cert	109W-0015
CE	5 GHz EN 302 502 v1.2.1 5 GHz: EN 301 893 v1.7.1
