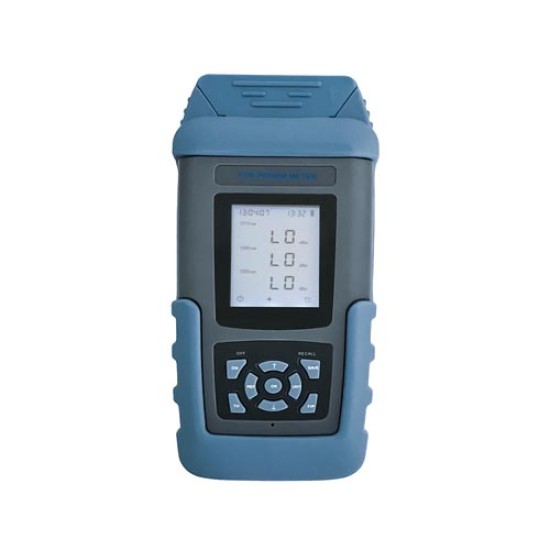

Senter ST805C-X PON Power Meter

-4 %

Price: 17,200৳
special price: 16,500৳
Status: In Stock
Brand: Senter
Model: Model

Based on 0 reviews. - Write a review

16,500৳

17,200৳

Ex Tax: 16,500৳

WhatsApp Inquiry

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে |

Key Features

- Brand: Senter
- Model: ST805C-X
- Resolution: 0.01dB
- Data Storage: 1000 Groups
- Testing of all PON signals (1310/1490/1550nm)
- Warranty: 1-Year Warranty

Description
Review

Senter ST805C-X PON Power Meter: ST805C-X PON Power Meter is specifically designed for the PON network construction and maintenance. It’s a useful site test tool for the engineers and maintenance operators of the PON network of FTTX. It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network. Pass/fail analysis is conveniently realized through users’ adjustable threshold of every wavelength. It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network. Pass/fail analysis is conveniently realized through users’ adjustable threshold of every wavelength. Main functions

3 wavelengths’ power of PON system synchronously: 1490nm, 1550nm, 1310nm.
Threshold value setting function.
Auto backlight off function.
Display the voltage of the battery.
Power off automatically when it is in low voltage.
Data Storage 1000 groups.

Parameters

Wavelength
Standard wavelengths	1310 (upstream)			1490 (downstream)	1550 (downstream)
Pass zone(nm)	1260～1360			1480～1500	1530～1570
Range(dBm)	-40～+10			-50～+10	-50～+25
Max. permitted input power	15dBm			15dBm	25dBm
Isolation @1310nm(dB)				>40	>40
Isolation @1490nm(dB)	>40				>40
Isolation @1550nm(dB)	>40			>40
Accurate the burst signal	Deviation <±0.5dB@-10dBm
Other Parameters
Optical fiber type			SM 9/25um
Optical fiber connector			SC/APC
Accurate			±0.2dB/±0.5dB(burst mode)
Linearity(dB)			0.1
Through Insertion Loss(dB)			<1.5
Resolution			0.01dB
Unit			dBm / Wx
General Specifications
Storage number		1000 items
Auto power off time		Included
Battery		AA x 3 or AC/DC adapter
Working temperature		-10~60℃
Storage Temperature		-20~70℃
Dimension (mm)		42mm90mm195mm
Weight (g)		About 350
