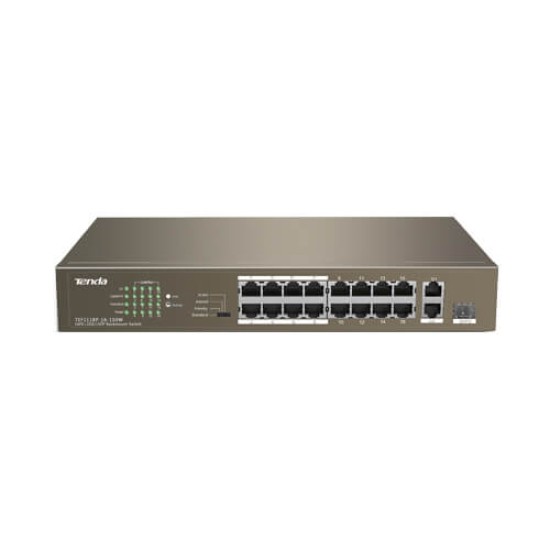

Tenda TEF1118P-16-150W 16-Port 10/100Mbps POE +1 Gigabit/SFP Slots Switch:
Tenda TEF1118P-16-150W not only offers 16 10/100 Mbps Base-TX RJ45 ports but also 1 10/100/1000 Mbps Base-T RJ45 ports and 1 1000 Mbps Base-X SFP port. Ports 1-16 comply with the IEEE 802.3af standard and 802.3at standard and each port can support a maximum PoE power output of 30W.
| HARDWARE FEATURES |
| Dimensions (L x W x H ) |
294 x 178 x 44 mm ( W x D x H ) |
| Interface |
16 10/100Base-TX ports(Data/Power)
1 10/100/1000Base-T port(Data)
1 1000Base-X SFP port |
| LED |
16*Link/Act per device
1*G1 Link/Act per device
1*SFP Link/Act per device
1*PoE-MAX per device
1*Power per device |
| Power Supply |
PoE supply management:
PoE supply management: Port 1 to Port 16 support IEEE802.3at/af POE standard
Input Power: AC：100-240V～ 50/60Hz
Power Consumption:
in full configuration：<150W
PoE Max Power Supply：135W |
| Main Feature |
| Type |
Switch |
| Port |
16 10/100 Mbps Base-TX ports(Data/Power)
1 10/100/1000 Mbps Base-T port
1 1000 Mbps Base-X SFP port |
| Network Standard |
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af |
| Access Method |
1 1000 Mbps Base-X SFP port |
| Advanced Functions |
6KV Lightning Protection
Store and forward: Yes
CCTV： 1-8 ports support QoS， If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device， like the monitoring computer. This ensures smoother monitoring of video playback.
Standard： The switch’s functions are similar to a common unmanaged switch and all the ports of the switch can communicate with each other.
It can be used to isolate broadcast storms and DHCP broadcasts.
All the ports of the switch can communicate with each other. |
| Transmission Method |
Wired |
| Data Transmission Rate |
16 10/100 Mbps Base-TX ports(Data/Power)
1 10/100/1000 Mbps Base-T port (Data) |
| MAC Address Table |
4K MAC |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
What is the price of the Tenda TEF1118P-16-150W 16-Port 10/100Mbps POE Switch in Bangladesh?
The latest price of the Tenda TEF1118P-16-150W 16-Port 10/100Mbps POE Switch in Bangladesh is 12,000৳. You can buy the Tenda TEF1118P-16-150W 16-Port 10/100Mbps POE Switch at the best price from our website or visit our showroom. Stay connected with our what's Page or Facebook Page.
